Formula SAE - REV8
Penn Electric Racing is the award-winning Formula SAE team from the University of Pennsylvania. Over the last decade, we have built 8 fully electric race cars, constantly pushing the limits of automotive innovation. For more information, click here.
Pedal Box System Overview
Introducing an integrated pedal box that accommodates both acceleration and brake functions, featuring an extensive selection of 7 adjustable settings.
This design ensures a full range of motion for both the brake and accelerator pedals, enhancing the overall driving experience. Designed for fast and secure adjustments to accommodate various driver configurations in under 1 minute, the system is fastened using precision steel clevis pins and steel hairpin cotter pins, ensuring both reliability and ease of use.
Scroll below to see it in detail!
U-Channel & Rail Design
Designed to accommodate various drivers, U-Channel is fastened to the rails with precision steel clevis pins and steel hairpin cotter pins, allowing easy and reliable adjustments in under 1 minute.
Twin parallel 1/8’’ steel rails: machined via waterjet with precision 0.2500 holes, and welded to chassis
Aluminium U-Channel: purchased to size and minimally post-machined to accommodate mounting holes and wiring spacing
Heel rest: mounted from the underside of the U-Channel via an intermediate plate to sit on the rails for security
Accel & Brake Pedal Assembly
Brake Pedal Details
Aluminum pedal body machined to 7.8 in x 0.625 in x 1.5 in
2x Tilton 78 master cylinders for front and rear
Balance bar allows for brake bias adjustability using the cockpit remote
BOTS (Brake Over Travel Switch) tab is positioned at the pedal base and attached onto master cylinder mounts
Able to withstand 2000 N of braking force and provides equal braking pressure regardless of foot position
Positioned opposite to brake reservoir to allow full range of motion and space to run lining.
90 percent of pedal motion is used for regenerative braking
Accel Pedal Details
Aluminum pedal body machined to 7.5’’ x 1’’ x 0.9’’
2 angle sensors attached to pedal mount around 0.63’’ bore diameter
Accelerator pedal has a built-in hard stop around the spring to stop at 15° of travel
Everything is machined in-house with aluminium, including mount for pedal, sensor, and pivot rod

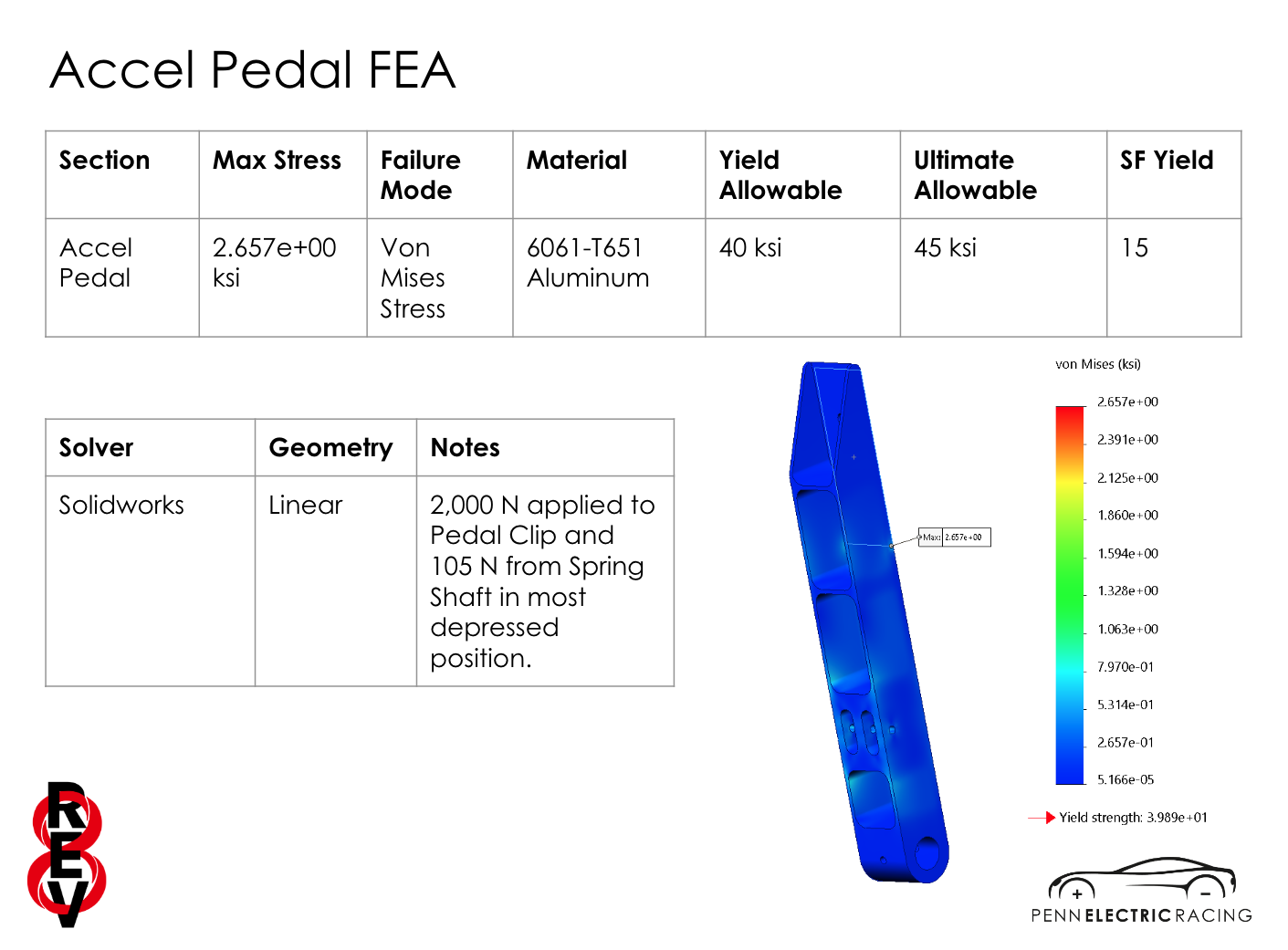

Finite Element Analysis (FEAs)
